Flange Facing Machine

• Automatic
• No

• Capacity
• Flanges up to 355 mm (14) diameter

• Color
• Silver and Black

• Computerized
• No

• Control System
• Other, Manual Operation

• Diameter
• 45 mm (min) to 355 mm (max)

• Dimension (L*W*H)
• 520 mm x 320 mm x 220 mm (approx.)

• Drawing
• Other, Available on request

• Feature
• Other, Portable, Compact design, Easy on-site application

• General Use
• Resurfacing and refacing of flange surfaces

• Material
• Other, Alloy Steel, Aluminum

• Product Type
• Hand Operated Flange Facing Machine

• QC System
• Visual and Dimensional Inspection

• Shape
• Rectangular Base with Circular Operation Head

• Surface Treatment
• Other, Rust-resistant coating

• Tolerance
• 0.02 mm

• Torque
• Manual torque as applied by user

• Touch Screen
• No

• Type
• Other, Hand Operated

• Weight (kg)
• Approx. 20 kg

• Automatic
• No

• Capacity
• Up to 1000 mm diameter flanges

• Color
• Industrial orange and black

• Computerized
• No

• Control System
• Other, Manual hand-crank operation

• Diameter
• Ranges from 150 mm to 1000 mm

• Dimension (L*W*H)
• 950 x 600 x 320 mm (approx.)

• Drawing
• Other, Available upon request

• Feature
• Other, Portable, lightweight, easy mounting, suitable for onsite use

• General Use
• On-site machining of flanges and sealing surfaces

• Material
• Other, Alloy steel and precision machined parts

• Product Type
• Flange Facing Machine

• QC System
• ISO certified manufacturing process

• Shape
• Modular circular mounting frame

• Surface Treatment
• Other, Powder coated/painted for corrosion resistance

• Tolerance
• 0.02 mm

• Torque
• Manual (depends on operator)

• Touch Screen
• No

• Type
• Other, Portable flange facer

• Voltage
• Not required (manual operation)

• Weight (kg)
• Approx. 75 kg

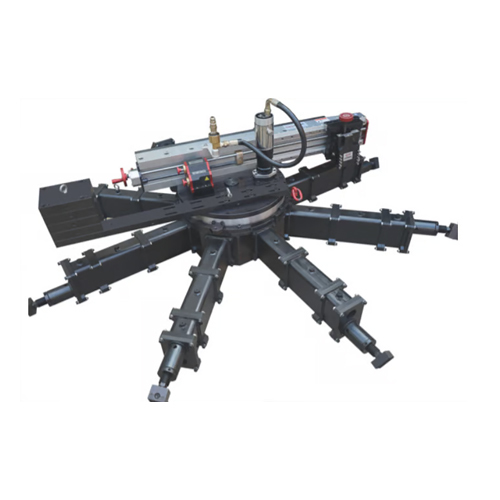

• Automatic
• Other, Semi-Automatic

• Capacity
• Up to 2000 mm (80 inch) diameter flange

• Color
• Industrial Yellow/Black

• Computerized
• No

• Control System
• Other, Manual Feed with Optional Power Feed

• Diameter
• 40 mm to 2000 mm (facing range)

• Dimension (L*W*H)
• 2450 x 820 x 700 mm (approx.)

• Drawing
• Other, Available on Request

• Feature
• Other, Portable, Modular Design, Easy Setup, High Precision Cutting

• General Use
• On-site Flange Facing, Pipe Flange Refacing, Repair and Maintenance

• Material
• Other, Alloy Steel, Stainless Steel Components

• Phase
• Single Phase (Electric) or Pneumatic

• Product Type
• Flange Facing Machine

• QC System
• Certified Inspection and Testing

• Shape
• Modular, Radial Arm Type

• Surface Treatment
• Other, Painted, Corrosion Resistant Coating

• Tolerance
• 0.05 mm

• Torque
• Adjustable, Up to 200 Nm

• Touch Screen
• No

• Type
• Other, On-site Portable Facing Machine

• Voltage
• 110V / 220V / Pneumatic Options

• Weight (kg)
• Approx. 550 kg
